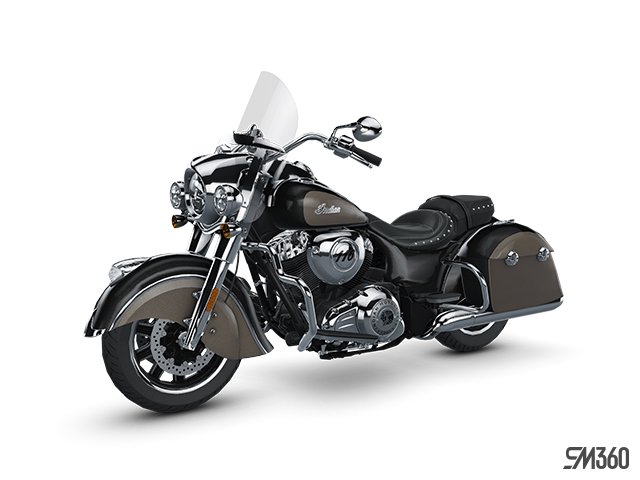

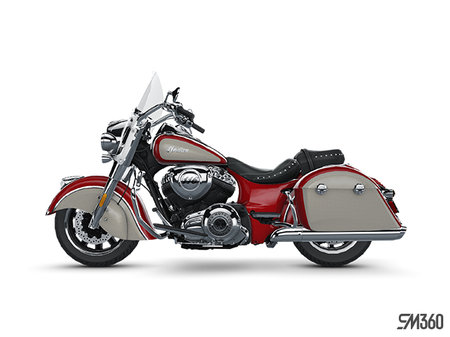

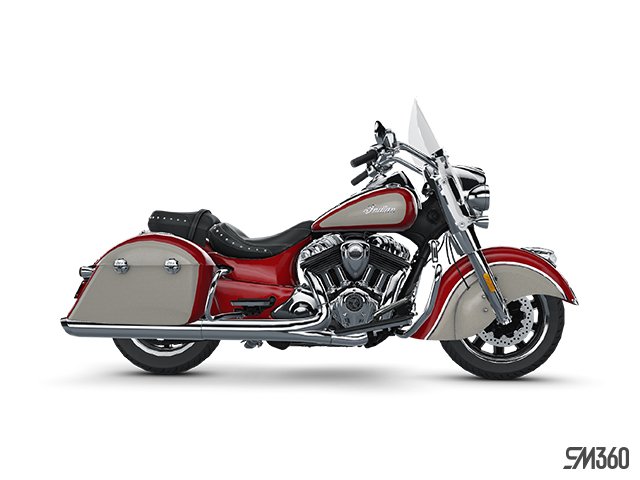

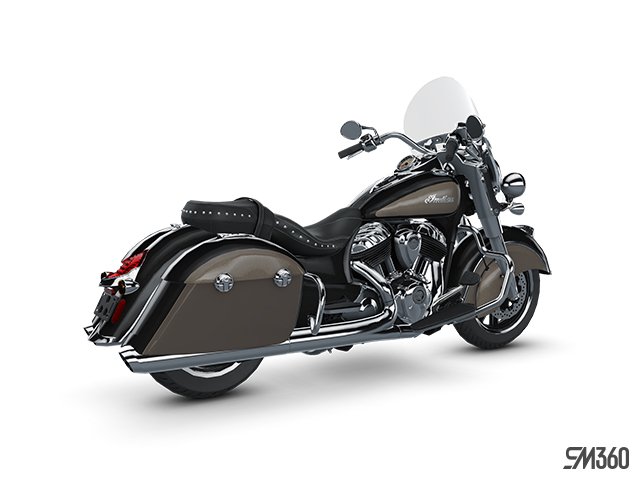

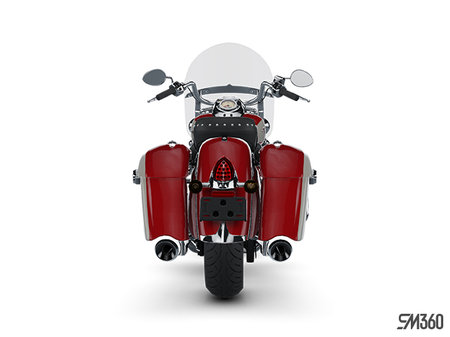

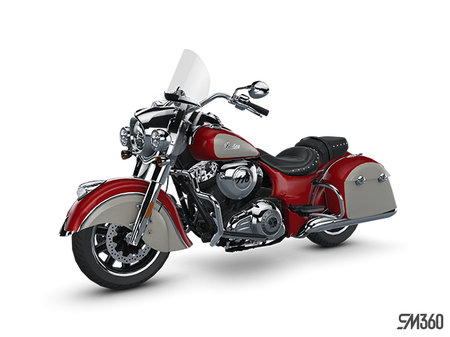

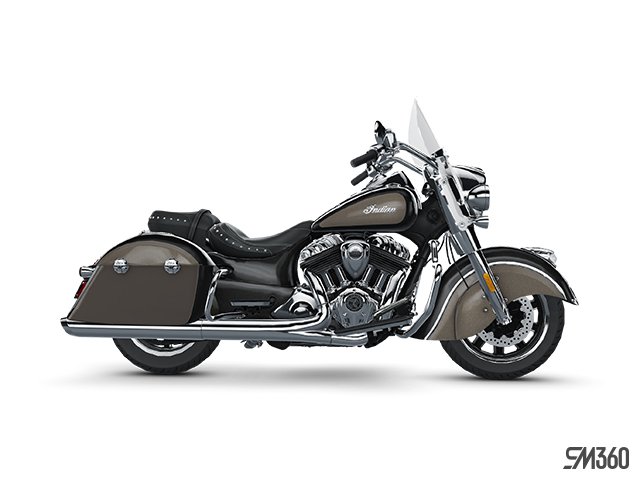

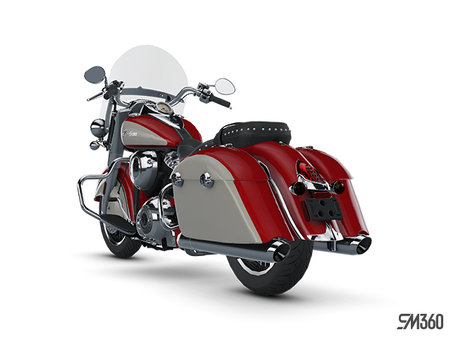

2026 Indian Springfield at Alary Sport

Standard

• Rear Brakes : Single / 300 mm Floating Rotor / 2 Piston Caliper
• Front Brakes : Dual / 300 mm Floating Rotors / 4 Piston Calipers

Standard

• Fuel Capacity : 5.5 Gallons (20.8 L)
• Ground Clearance : 5.6 in (142 mm)
• GVWR : 1,385 lbs (628 kg)
• Lean Angle : 31°
• Lean Angle : 31°
• Overall Height : 56.6 in (1,439 mm)
• Overall Length : 101.7 in (2,583 mm)
• Overall Width : 42.5 in (1,080 mm)
• Rake/Trail : 25° / 5.2 in (133 mm)
• Seat Height : 26 in (660 mm)
• Weight (Dry Weight / Running Order) : 795 lbs (362 kg) / 827 lbs (375 kg)
• Wheelbase : 67.0 in (1,701 mm)

Standard

• Front Fork Tube Diameter : 46 mm
• Front Suspension : Telescopic Fork
• Front Travel : 4.7 in (119 mm)
• Rear Suspension : Single Shock w/ Air Adjust
• Rear Travel : 4.5 in (114 mm)

Standard

• Factory Warranty : 2 Years, Unlimited Miles
• Storage : Classic Remote-Locking Hard Saddlebags - 17 Gallons
• Lights : LED Headlamp/Driving, LED Tail/Brake/Turn Signal
• Standard Equipment : Quick Release Windshield; 2-Up Studded Seat; Remote-Locking Hard Saddlebags; Highway Bars; Tire Pressure Monitoring; Light Bar; Selectable Ride Modes; ABS; Cruise Control; Keyless Ignition; Indian Script Tank Badge; 12v Charging Port; Floorboards
• Passenger Accommodations : 2-Up Studded Seat, Passenger Floorboards
• Gauge : 4 in Analog Gauge with Speedometer, Indicator Lamps, and Multi-Function Display
• Design : Heritage inspired, draped in chrome, and valanced fender with lit headdress

Standard

• Bore x Stroke : 4.063 in x 4.449 in (103.2 mm x 113 mm)
• Compression Ratio : 11.0:1
• Electronic Fuel Injection System : Closed loop fuel injection / 54 mm bore
• Engine Type : Air-cooled Thunderstroke 116
• Gear Ratio (1st) : 9.403 : 1
• Gear Ratio (2nd) : 6.411 : 1
• Gear Ratio (3rd) : 4.763 : 1
• Gear Ratio (4th) : 3.796 : 1
• Gear Ratio (5th) : 3.243 : 1
• Gear Ratio (6th) : 2.789 : 1
• Peak Torque RPM : 2,900 rpm
• Transmission/Final Drive : 2.2 : 1
• Transmission/Primary Drive : Gear Drive Wet Clutch
• Displacement : 116 cu-in (1,890 cc)
• Drive/Driven Clutch : Wet, Multi-Plate, Assist
• Exhaust : Split Dual Exhaust w/ Cross-over
• Peak Torque : 126 ft-lbs

Standard

• Rear Wheel : Cast 16 in x 5 in
• Front Tires : Metzeler Cruisetec 130/80B17 65H
• Front Wheel : Cast 17 in x 3.5 in
• Rear Tires : Metzeler Cruisetec 180/60R16 80H
