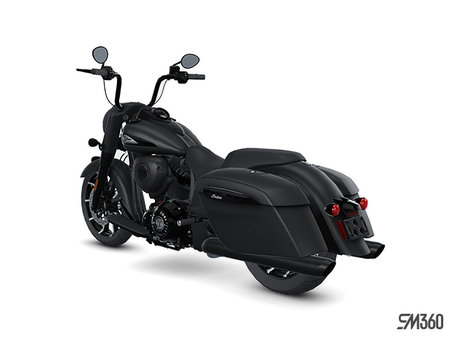

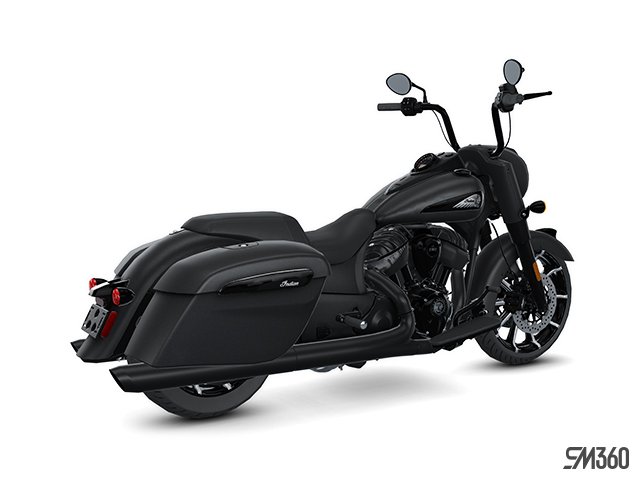

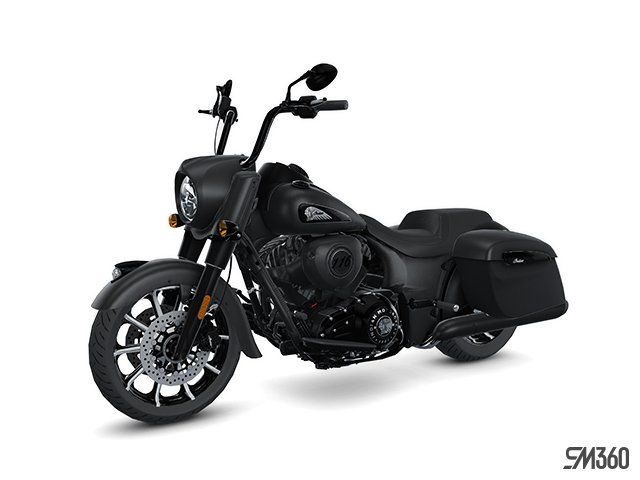

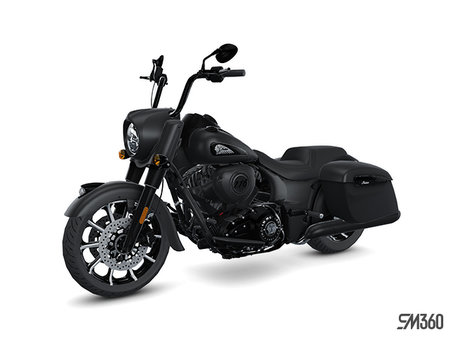

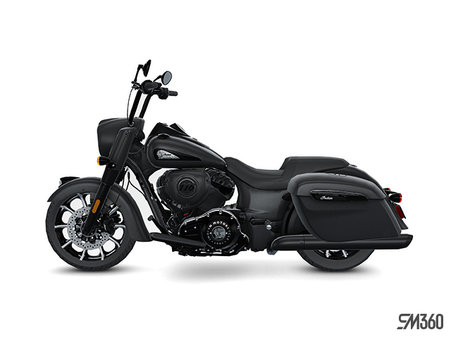

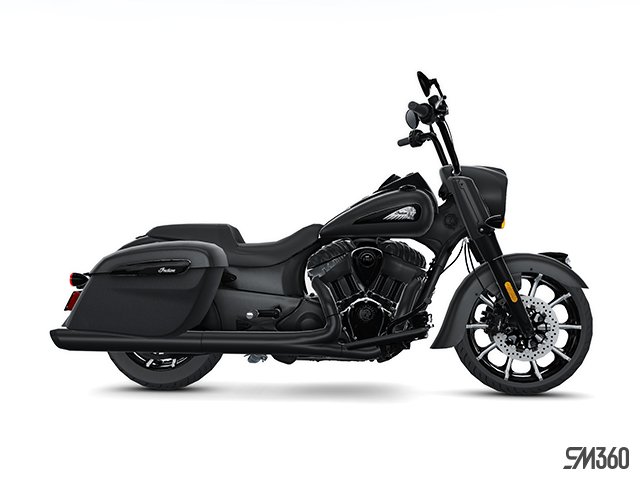

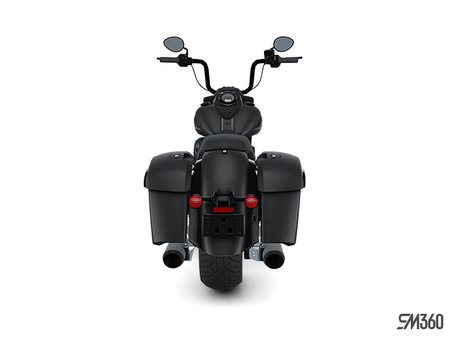

2025 Indian Springfield Dark Horse at Alary Sport

Standard

• Rear Brakes - Single / 300 mm Floating Rotor / 2 Piston Caliper
• Front Brakes - Dual 300mm floating rotors with 4-piston calipers

Standard

• Seat Height (Laden) - 26.5 in (673 mm)
• Lean Angle - 31°
• Fuel Capacity - 5.5 gal (20.8 L)
• Ground Clearance - 5.1 in (130 mm)
• GVWR - 1385 lbs (628 kg)
• Overall Height - 48.3 in (1226 mm)
• Overall Length - 99.3 in (2,522 mm)
• Overall Width - 38.3 in (972 mm)
• Rake/Trail - 25° / 5.2 in (133 mm)
• Wheelbase - 67.0 in (1,701 mm)
• Weight (As Shipped / Running Order) - 753 lbs (342 kg) / 776 lbs (352 kg)

Standard

• Front Suspension - Telescopic Fork
• Front Fork Tube Diameter - 46 mm
• Front Travel - 4.7 in (119 mm)
• Rear Suspension - Single Shock w/ Air adjust
• Rear Travel - 4.5 in (114 mm)

Standard

• Factory Warranty - 2 Years, Unlimited Miles
• Lights - LED Headlamp/Driving, LED Tail/Brake/Turn Signal
• Gauges - 4" Analog Gauge with Speedometer, Indicator Lamps, and Multi-Function Display
• Standard Equipment - Quick Release Windshield; Genuine Leather Seat; Remote-Locking Hard Saddlebags, Highway Bars; Tire Pressure Monitoring; Light Bar; Selectable Ride Modes, ABS; Cruise Control; Keyless Ignition; Indian Script Tank Badge; 12v Charging Port

Standard

• Transmission/Primary Drive - Gear Drive Wet Clutch
• Electronic Fuel Injection System - Closed loop fuel injection / 54 mm bore
• Gear Ratio (1st) - 9.403 : 1
• Gear Ratio (2nd) - 6.411 : 1
• Gear Ratio (3rd) - 4.763 : 1
• Gear Ratio (4th) - 3.796 : 1
• Gear Ratio (5th) - 3.243 : 1
• Gear Ratio (6th) - 2.789 : 1
• Peak Torque RPM - 2,900 rpm
• Transmission/Final Drive - 2.2 : 1
• Engine Type - Air-cooled Thunderstroke 116
• Bore x Stroke - 4.063 in x 4.449 in (103.2 mm x 113 mm)
• Displacement - 116 cu in (1,890 cc)
• Drive/Driven Clutch - Wet, Multi-Plate, Assist
• Peak Torque - 126 ft-lbs
• Compression Ratio - 11,0:1
• Exhaust - Separate dual exhaust with crossover

Standard

• Rear tires- Metzeler Cruisetec 180/60R16 80H
• Rear Wheel- Machined Highlights, 16“ x 5” Tower
• Front wheel- Machined Highlights, Tour 17” x 3.5”
• Front tires- Metzeler Cruisetec 130/60B19 66H
